Technology and applications

Most PET bottle blowing enquiries begin with an injection-molded preform that is reheated, stretched axially and expanded with compressed air inside a mold. For heat-resistant applications, the forming and thermal-conditioning process must produce a container suitable for the agreed hot-fill cycle. Heat-set processes use controlled heating and dwell to improve dimensional stability; some systems use additional forming stages. The appropriate route depends on the bottle and duty.

The bottle body, base and neck do not experience identical conditions. A design that retains its external shape can still have an unacceptable neck movement or sealing problem. Review the closure and finish with the bottle specification, and verify that the container remains compatible with capping, conveying and labeling equipment after processing.

Hot filling and in-container pasteurization are different process duties. Likewise, a bottle-making machine does not provide a validated food-preservation process by itself. The beverage producer must define the required processing conditions with the responsible specialists, then have the equipment supplier qualify the package against those conditions. Avoid using a general hot-fill label as approval for a particular product.

Cooling can create internal vacuum in a closed container. Bottle panels, base designs and other package features may manage that load, depending on the selected packaging system. Send the complete bottle and closure concept for assessment instead of assuming that a decorative shape can be copied directly from a cold-fill container.

Materials and process control

Start with the proposed preform specification: resin grade, weight, dimensions, neck finish and any recycled-content requirement. Changes in the preform can affect heating, stretching and material distribution. A statement that equipment can process PET does not confirm that every preform source or recycled-content blend will perform identically in a demanding hot-fill application.

Agree which incoming-preform checks and process records will be maintained. Useful discussions include oven settings, mold temperatures, stretching timing, pressure sequences and rejection criteria. The supplier should explain which parameters are controlled automatically, which require operator adjustment and how an approved recipe is protected from unrecorded changes.

Assess container performance after the agreed filling, holding and cooling sequence, not only immediately after blowing. Define measurements for overall dimensions, neck geometry, sealing, volume change and any mechanical properties important to storage or transport. The test plan should identify sampling across cavities, measurement timing and the conditions used to judge a pass.

Keep the acceptance sample traceable to its preform batch, machine setup and cavity. A visually attractive sample produced during development is useful, but it is not a substitute for repeatable performance during an agreed production trial. Record approved settings and the limits within which the operator can make adjustments.

Supplier selection and quality

Prepare one enquiry package and issue it consistently to the shortlisted suppliers. Include bottle drawings, preform information, closure details, product category, thermal cycle, required output and the site layout. Clearly identify which figures are fixed requirements and which are targets open to discussion. This prevents suppliers from pricing different interpretations of the same project.

Ask for relevant application references and distinguish demonstrated production from a development proposal. Where the published evidence concerns an older machine family, request written confirmation of the current replacement or available configuration. Do not assume that a model mentioned in an archived technical release remains on sale unchanged.

Define factory and site acceptance separately. The factory test should establish the agreed machine performance with the specified inputs; site acceptance must also consider utilities, surrounding equipment and the installed line. Assign responsibility for samples, instruments, test product, travel and corrective work before the equipment ships.

Service capability is part of the technical comparison. Confirm the support location, escalation route, critical spare parts, training language and availability of updated manuals. Ask who handles a problem that spans the blower and partner-supplied filler. A single named integration lead can make those responsibilities clearer without implying that every machine comes from one manufacturer.

Costs and procurement

Compare total installed scope, not only the blower price. Tooling, preform handling, compressors, heating and cooling services, inspection, conveying, installation and commissioning may be separate items. An integrated block may reduce some interfaces while creating different installation and maintenance requirements. Request an itemized inclusion list from every bidder.

Evaluate energy and compressed-air figures at an agreed operating point. Specify the bottle, output, measurement boundary and production conditions used for the comparison. A percentage-saving claim without its baseline does not establish the running cost of your installation. Include scrap, stabilization after changeover and planned maintenance when building the operating-cost model.

Separate machine delivery from readiness to produce. Packaging development, mold approval, site utilities, installation and acceptance can each affect the schedule. Link payment milestones to documented deliverables, and specify the procedure when a trial does not meet the agreed criteria. The commercial contract should reflect the technical specification rather than relying on general catalog language.

Frequently asked questions

Can a standard PET water-bottle blower make hot-fill bottles?

Not automatically. The machine, tooling, preform and bottle design must support the required thermal duty. Ask the manufacturer for a qualified heat-set configuration or documented conversion proposal. Changing a recipe without validating the finished container is not sufficient evidence of suitability.

Is a hot-fill bottle machine the same as a hot-fill bottling line?

No. The blower produces containers; a complete line also needs the relevant product preparation, filling, capping and downstream operations. Some suppliers offer integrated systems, while others combine their own machines with partner equipment. Confirm the exact supply boundary and acceptance responsibility.

Should the highest bottles-per-hour rating decide the shortlist?

No. Compare guaranteed saleable output for the specified bottle and process. Catalog ratings may apply to different sizes, weights or thermal conditions. Availability, reject rate, changeovers, utilities and support also influence the capacity that the installed system can reliably deliver.

Can recycled PET be used for a hot-fill bottle project?

It may be feasible, but the proposed preform material, packaging requirements and applicable food-contact obligations need a separate review. Ask the supplier to qualify the actual preform specification and agreed recycled-content range. Do not infer approval from a general statement about processing rPET.

Related supplier guides

For a different sourcing route, compare extrusion blow molding companies. That guide concerns a different forming process and should not be treated as a substitute for PET stretch-blow equipment qualification. The blow molding company directory provides broader company discovery beyond this machinery shortlist.

Image credit

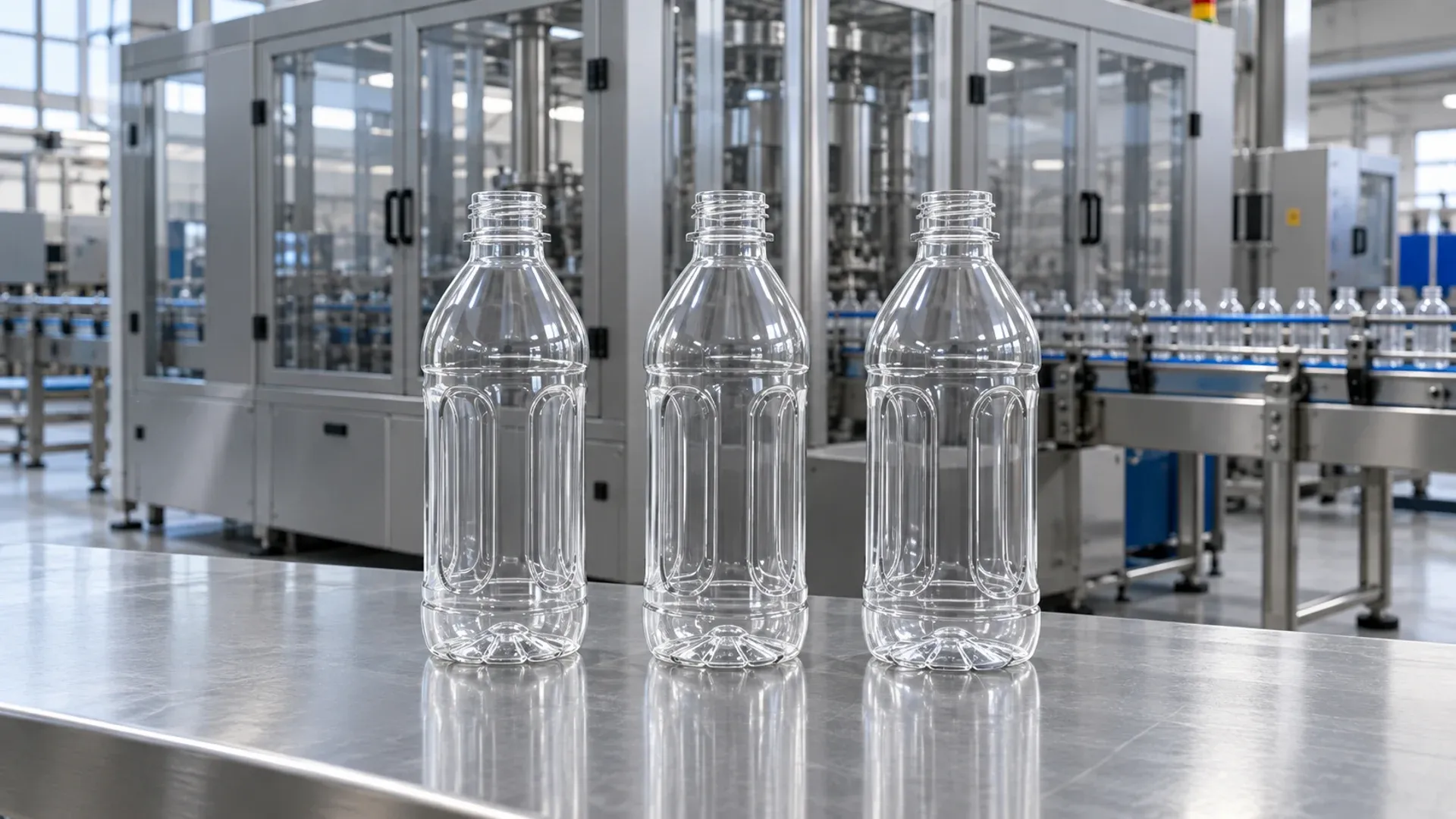

Editorial illustration: PlasticParts Hub. The image represents a generic PET bottle production setting, not a named supplier's machine or a verified production installation.
