MAAC Model 85R4DPT is a sheet-fed thermoforming machine with an 8 x 4 ft nominal format (2438.4 x 1219.2 mm), a four-station rotary layout and two ovens. It is configured for twin-sheet pressure forming, joining two heated thermoplastic sheets into a hollow component. The MAAC R4DPT platform supports both single-oven and double-oven twin-sheet processing. Double-oven operation accommodates applications involving thicker materials, inserts or plug assistance. This listing is for a new machine manufactured to order; final tooling, controls and process options are agreed with MAAC for the application.

The LITE 2215 is an industrial vacuum forming machine designed to manufacture large plastic components from thermoplastic sheets. Its robust welded frame and large forming area make it suitable for industrial production and custom manufacturing. Technical Specifications Sheet size: 2240 × 1540 mm Forming area: 2200 × 1500 mm Maximum forming depth: 500 mm Maximum material thickness: 7 mm Power consumption: 90 kW Power supply: Three-phase, 400 V, 50 Hz. Key Features The machine features 450 W infrared quartz heaters, servo-driven movement of the heating unit, and pneumatic drives for both the forming table and clamping frame. A 7-inch operator panel provides access to machine controls and process settings. Compatible Materials Suitable for forming ABS, PETG, HIPS, PVC, PP, PC, and other thermoplastic sheet materials. Applications Designed for producing automotive panels, industrial enclosures, packaging trays, advertising displays, architectural elements, and custom-moulded components. Suitable for prototyping, small-batch manufacturing, and large-format industrial production.

The Machinecraft PF1-XL-6022 is a large-format sheet-fed vacuum forming machine with a documented forming area of 6000 x 2200 mm. A customer installation is used to produce HDPE flood trays for horticultural growing systems. Its closed chamber provides controlled pre-blow, and sheet-sag sensors support heating control over the large sheet area. Top and bottom infrared ceramic ovens use individual heating zones. A servo-driven forming table provides programmable movement, while a motorised aperture supports changes in tray size. This is a made-to-order machine for production requirements agreed with the manufacturer. The pictured customer installation demonstrates the model; it is not an offer to sell that installed machine. Price is available on request.

The Machinecraft PF1-XL-3535 is a sheet-fed vacuum forming machine developed for deep-drawn HDPE pickup-truck bed liners. Its forming area measures 3500 x 3500 mm. The documented custom machine uses a closed chamber and controlled pre-blow to stretch the heated sheet before it contacts the tool. Top and bottom infrared heating banks provide zoned temperature control, with a retracting bottom heater and sensors that monitor sheet sag. A servo-driven forming table supports programmable forming movements. The machine is built around the required part, tool and material. Final forming-depth capability and equipment options are agreed for the individual build. Price is available on request.

The Machinecraft PF1-X-5028 XL is a sheet-fed vacuum forming machine for large plastic components. Its documented forming area is 5000 x 2800 mm. The FAT configuration combines a servo-driven forming table with top and bottom infrared ovens, a closed forming chamber, pre-blow control and sheet-sag monitoring. Automatic sheet loading and part unloading support the forming cycle. A motorised aperture accommodates different sheet sizes, while the PLC touchscreen stores process recipes. The machine is intended for applications such as vehicle panels, tractor canopies and other large enclosures. Machinecraft builds each machine to the agreed application and specification. Price is available on request.

Forming depth (mm)

500

Maximum Sheet Thickness (mm)

3

Forming depth (mm)

1000

Maximum Sheet Thickness (mm)

15

Forming depth (mm)

350

Maximum Sheet Thickness (mm)

6

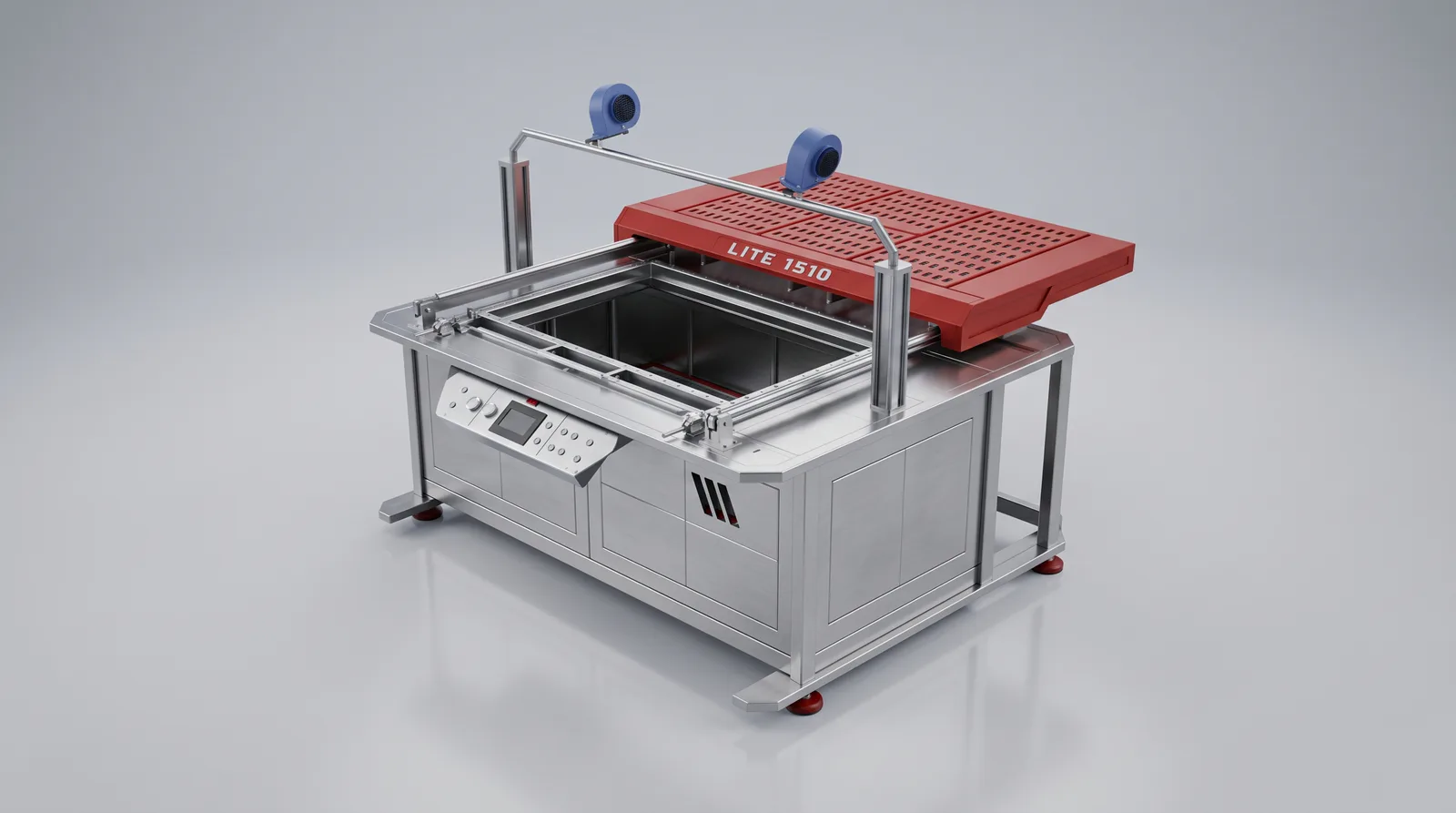

LITE 1510 Vacuum Forming Machine — 1500 × 1000 mm The LITE 1510 is an industrial vacuum forming machine designed to manufacture three-dimensional plastic parts from thermoplastic sheets. Its robust construction and powerful heating system make it suitable for production facilities, engineering workshops, and custom manufacturing. Technical Specifications Sheet size: 1500 × 1000 mm Forming area: 1460 × 960 mm Maximum forming depth: 400 mm Maximum material thickness: 7 mm Power consumption: 40 kW Power supply: Three-phase, 400 V, 50 Hz. Key Features The machine features 450 W infrared quartz heaters, servo-driven movement of the heating unit, a pneumatically operated forming table, and a manually operated clamping frame. A 7-inch operator panel provides the interface for machine control. Compatible Materials Suitable for forming ABS, PETG, HIPS, PVC, PP, PC, and other thermoplastic sheet materials. Applications Designed for producing packaging trays, plastic enclosures, automotive components, signage, point-of-sale displays, and custom-moulded parts. Suitable for prototyping, small-batch manufacturing, and industrial production.
