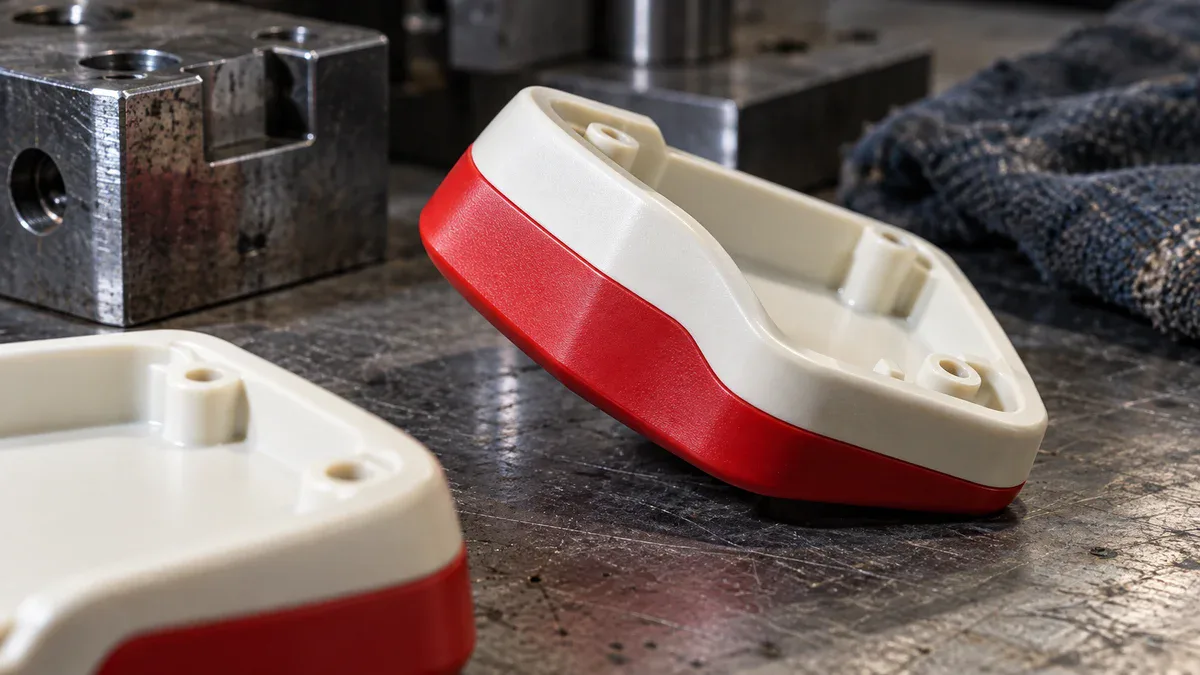

Two-Shot Injection Molding: When Core-Back Tooling Makes Sense

Other approaches change the relationship between part and cavity. A turntable rotates the ejector side; an index arrangement moves the first shot into another cavity; transfer molding relocates a preform, potentially to another machine. The same manufacturer overview distinguishes these routes. Compare them against the actual part rather than treating core-back as the default for every two-shot project.

For a proposed core-back tool, request a sequence drawing that shows the first-shot cavity, the retracted elements and the second-shot cavity. A finished-part rendering does not explain how the tool reaches its intermediate state.

The material interface still needs validation

The domino example uses two colors of ABS. It does not establish that a different resin pair will bond, seal or survive service conditions. A rigid housing with an elastomer gasket creates a different set of requirements from a decorative two-color part.

Protolabs' overmolding and insert molding guide separates adhesion between materials from mechanical retention created by the interface geometry. It also identifies material selection, tool design and processing conditions as contributors to the final bond. Use that distinction when specifying the joint: identify whether adhesion, interlocking features or both carry the required load.

Agree the relevant test before approving tooling. A seal may require leak testing after thermal cycling. A grip may need peel or pull testing. A color feature may principally need a clean boundary and resistance to normal handling. These are different acceptance criteria, even when the machine sequence looks similar.

Also examine whether the first shot remains stable during the second injection. The supplier should demonstrate the intended wall thicknesses, support surfaces and processing conditions with the selected grades. Broad polymer-family names are too vague for a final material specification.

No rotation between shots does not determine cycle time

Keeping the mold closed removes a transfer step from this particular sequence. It does not establish a faster overall cycle than another mold concept. Both injections, core movement, cooling and removal still contribute to production time.

ARBURG's reported 60-second cycle belongs to that ABS domino application. Do not use it as a benchmark for a small connector, a thick handle or a sealing component. Those parts have different geometry and quality requirements.

Ask for a cycle breakdown showing which operations run sequentially and which overlap. Include the robot and any downstream inspection or packaging. A molding cycle that fits the target output is insufficient if the finished parts wait for a slower inspection station.

For a separate example of the work between a component model and mold acceptance, see Giebeler's mold engineering, toolmaking and trials.

What to put in a two-shot tooling inquiry

The two-shot injection molding supplier guide provides a starting shortlist and separates production molding from specialist tooling capabilities. When shortlisting molding and tooling companies, ask for evidence of comparable movable-core geometry and material combinations. Experience with a rotating two-component mold does not by itself demonstrate the proposed retracting-core solution.

Provide an RFQ with the CAD model, section views through the material interface, exact resin grades, color requirements, annual demand and critical tolerances. Request a proposal covering:

• The shot order, gate positions and support of the first shot.
• The core movement, position confirmation and second-shot shutoffs.
• Material-boundary, bond and functional inspection methods.
• Maintenance access to moving elements and replacement of wear components.
• A trial plan demonstrating accepted parts at the quoted cycle time.

Make the mold sequence a reviewable part of the quotation. Before committing to core-back, the buyer and toolmaker should be able to follow how each shot forms, how the moving elements clear it and how the finished component will be inspected.
